R108R78減速機詳細信息
R108R78減速機
訂購熱線：13360667204
R108R78減速器電機功率：R108R78Y0.12KW減速器,R108R78Y0.18KW減速器,R108R78Y0.25KW減速器,R108R78Y0.37KW減速器,R108R78Y0.55KW減速器,R108R78Y0.75KW減速器,R108R78Y1.1KW減速器,R108R78Y1.5KW減速器,R108R78Y2.2KW減速器,R108R78Y3KW減速器,R108R78Y4KW減速器（可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機）。
R107FRF77減速機配0.12KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y0.12KW | 7583 | 0.12KW | 0.18r/min | 4410N.m | 194.5kg | 28800N | 0.95 |
| R107FRF77-Y0.12KW | 6743 | 0.12KW | 0.20r/min | 3690N.m | 194.5kg | 32400N | 1.15 |
| R107FRF77-Y0.12KW | 5914 | 0.12KW | 0.23r/min | 3660N.m | 194.5kg | 32500N | 1.15 |
| R107FRF77-Y0.12KW | 5168 | 0.12KW | 0.27r/min | 2820N.m | 194.5kg | 35500N | 1.50 |
| R107FRF77-Y0.12KW | 4435 | 0.12KW | 0.31r/min | 2530N.m | 194.5kg | 36100N | 1.70 |
| R107FRF77-Y0.12KW | 3896 | 0.12KW | 0.35r/min | 2260N.m | 194.5kg | 36500N | 1.90 |
| R107FRF77-Y0.12KW | 3039 | 0.12KW | 0.45r/min | 1880N.m | 194.5kg | 36900N | 2.30 |
| R107FRF77-Y0.12KW | 3918 | 0.12KW | 0.35r/min | 2470N.m | 194.5kg | 36200N | 1.75 |
| R107FRF77-Y0.12KW | 3343 | 0.12KW | 0.41r/min | 2100N.m | 194.5kg | 36700N | 2.00 |
| R107FRF77-Y0.12KW | 3034 | 0.12KW | 0.45r/min | 1910N.m | 194.5kg | 36900N | 2.20 |
| R107FRF77-Y0.12KW | 2653 | 0.12KW | 0.52r/min | 1670N.m | 194.5kg | 37100N | 2.60 |
| R107FRF77-Y0.12KW | 2280 | 0.12KW | 0.61r/min | 1430N.m | 194.5kg | 37300N | 3.00 |
| R107FRF77-Y0.12KW | 2067 | 0.12KW | 0.67r/min | 1290N.m | 194.5kg | 37400N | 3.30 |
R107FRF77減速機配0.18KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y0.18KW | 4435 | 0.18KW | 0.30r/min | 4490N.m | 195kg | 28400N | 0.95 |
| R107FRF77-Y0.18KW | 3896 | 0.18KW | 0.34r/min | 3980N.m | 195kg | 31100N | 1.10 |
| R107FRF77-Y0.18KW | 3039 | 0.18KW | 0.43r/min | 3220N.m | 195kg | 34200N | 1.35 |
| R107FRF77-Y0.18KW | 3918 | 0.18KW | 0.34r/min | 4210N.m | 195kg | 29900N | 1.00 |
| R107FRF77-Y0.18KW | 3343 | 0.18KW | 0.39r/min | 3590N.m | 195kg | 32800N | 1.20 |
| R107FRF77-Y0.18KW | 3034 | 0.18KW | 0.44r/min | 3260N.m | 195kg | 34100N | 1.30 |
| R107FRF77-Y0.18KW | 2653 | 0.18KW | 0.50r/min | 2850N.m | 195kg | 35400N | 1.50 |
| R107FRF77-Y0.18KW | 2280 | 0.18KW | 0.58r/min | 2450N.m | 195kg | 36200N | 1.75 |
| R107FRF77-Y0.18KW | 2067 | 0.18KW | 0.64r/min | 2210N.m | 195kg | 36500N | 1.95 |
| R107FRF77-Y0.18KW | 1987 | 0.18KW | 0.66r/min | 2100N.m | 195kg | 36700N | 2.00 |
| R107FRF77-Y0.18KW | 1827 | 0.18KW | 0.72r/min | 1870N.m | 195kg | 36900N | 2.30 |
| R107FRF77-Y0.18KW | 1599 | 0.18KW | 0.83r/min | 1590N.m | 195kg | 37200N | 2.70 |
| R107FRF77-Y0.18KW | 1400 | 0.18KW | 0.94r/min | 1430N.m | 195kg | 37300N | 3.00 |
| R107FRF77-Y0.18KW | 1226 | 0.18KW | 1.10r/min | 1220N.m | 195kg | 37400N | 3.50 |
R107FRF77減速機配0.25KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y0.25KW | 3039 | 0.25KW | 0.43r/min | 4730N.m | 199kg | 25600N | 0.90 |
| R107FRF77-Y0.25KW | 3034 | 0.25KW | 0.43r/min | 4780N.m | 199kg | 23600N | 0.90 |
| R107FRF77-Y0.25KW | 1987 | 0.25KW | 0.65r/min | 3100N.m | 199kg | 34600N | 1.40 |
| R107FRF77-Y0.25KW | 1827 | 0.25KW | 0.71r/min | 2790N.m | 199kg | 35600N | 1.55 |
| R107FRF77-Y0.25KW | 1599 | 0.25KW | 0.81r/min | 2400N.m | 199kg | 36300N | 1.80 |
| R107FRF77-Y0.25KW | 1400 | 0.25KW | 0.93r/min | 2140N.m | 199kg | 36600N | 2.00 |
| R107FRF77-Y0.25KW | 1226 | 0.25KW | 1.10r/min | 1840N.m | 199kg | 36900N | 2.30 |
| R107FRF77-Y0.25KW | 939 | 0.25KW | 1.40r/min | 1430N.m | 199kg | 37300N | 3.00 |
| R107FRF77-Y0.25KW | 822 | 0.25KW | 1.60r/min | 1230N.m | 199kg | 37400N | 3.50 |
R107FRF77減速機配0.37KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y0.37KW | 2067 | 0.37KW | 0.67r/min | 4660N.m | 199.5kg | 27300N | 0.90 |
| R107FRF77-Y0.37KW | 1693 | 0.37KW | 0.82r/min | 3790N.m | 199.5kg | 31900N | 1.15 |
| R107FRF77-Y0.37KW | 1550 | 0.37KW | 0.89r/min | 3420N.m | 199.5kg | 33500N | 1.25 |
| R107FRF77-Y0.37KW | 1407 | 0.37KW | 0.98r/min | 3100N.m | 199.5kg | 34600N | 1.40 |
| R107FRF77-Y0.37KW | 1209 | 0.37KW | 1.10r/min | 2660N.m | 199.5kg | 35900N | 1.60 |
| R107FRF77-Y0.37KW | 1055 | 0.37KW | 1.30r/min | 2330N.m | 199.5kg | 36400N | 1.85 |
| R107FRF77-Y0.37KW | 1987 | 0.37KW | 0.69r/min | 4450N.m | 199.5kg | 28600N | 0.95 |
| R107FRF77-Y0.37KW | 1827 | 0.37KW | 0.76r/min | 4030N.m | 199.5kg | 30800N | 1.05 |
| R107FRF77-Y0.37KW | 1599 | 0.37KW | 0.86r/min | 3490N.m | 199.5kg | 33200N | 1.25 |
| R107FRF77-Y0.37KW | 1400 | 0.37KW | 0.99r/min | 3090N.m | 199.5kg | 34600N | 1.40 |
| R107FRF77-Y0.37KW | 1226 | 0.37KW | 1.10r/min | 2670N.m | 199.5kg | 35900N | 1.60 |
| R107FRF77-Y0.37KW | 939 | 0.37KW | 1.50r/min | 2070N.m | 199.5kg | 36700N | 2.10 |
| R107FRF77-Y0.37KW | 822 | 0.37KW | 1.70r/min | 1790N.m | 199.5kg | 37000N | 2.40 |
R107FRF77減速機配0.55KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y0.55KW | 1407 | 0.55KW | 0.98r/min | 4750N.m | 204kg | 24800N | 0.90 |
| R107FRF77-Y0.55KW | 1209 | 0.55KW | 1.10r/min | 4080N.m | 204kg | 30600N | 1.05 |
| R107FRF77-Y0.55KW | 1055 | 0.55KW | 1.30r/min | 3560N.m | 204kg | 32900N | 1.20 |
| R107FRF77-Y0.55KW | 919 | 0.55KW | 1.50r/min | 3110N.m | 204kg | 34600N | 1.40 |
| R107FRF77-Y0.55KW | 815 | 0.55KW | 1.70r/min | 2780N.m | 204kg | 35600N | 1.55 |
| R107FRF77-Y0.55KW | 717 | 0.55KW | 1.90r/min | 2430N.m | 204kg | 36300N | 1.75 |
| R107FRF77-Y0.55KW | 626 | 0.55KW | 2.20r/min | 2120N.m | 204kg | 36600N | 2.00 |
| R107FRF77-Y0.55KW | 1400 | 0.55KW | 0.99r/min | 4730N.m | 204kg | 25600N | 0.90 |
| R107FRF77-Y0.55KW | 1226 | 0.55KW | 1.10r/min | 4110N.m | 204kg | 30400N | 1.05 |
| R107FRF77-Y0.55KW | 1104 | 0.55KW | 1.20r/min | 3680N.m | 204kg | 32400N | 1.15 |
| R107FRF77-Y0.55KW | 939 | 0.55KW | 1.50r/min | 3170N.m | 204kg | 34400N | 1.35 |
| R107FRF77-Y0.55KW | 822 | 0.55KW | 1.70r/min | 2750N.m | 204kg | 35700N | 1.55 |
R107FRF77減速機配0.75KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y0.75KW | 1055 | 0.75KW | 1.40r/min | 4740N.m | 205kg | 25200N | 0.90 |
| R107FRF77-Y0.75KW | 919 | 0.75KW | 1.60r/min | 4140N.m | 205kg | 30300N | 1.05 |
| R107FRF77-Y0.75KW | 815 | 0.75KW | 1.80r/min | 3690N.m | 205kg | 32400N | 1.15 |
| R107FRF77-Y0.75KW | 939 | 0.75KW | 1.50r/min | 4210N.m | 205kg | 29900N | 1.00 |
| R107FRF77-Y0.75KW | 822 | 0.75KW | 1.80r/min | 3670N.m | 205kg | 32500N | 1.15 |
| R107FRF77-Y0.75KW | 369 | 0.75KW | 3.90r/min | 1640N.m | 205kg | 37100N | 2.60 |
| R107FRF77-Y0.75KW | 323 | 0.75KW | 4.40r/min | 1430N.m | 205kg | 37300N | 3.00 |
R107FRF77減速機配1.1KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y1.1KW | 717 | 1.1KW | 2.00r/min | 4850N.m | 209kg | 20800N | 0.90 |
| R107FRF77-Y1.1KW | 614 | 1.1KW | 2.30r/min | 4090N.m | 209kg | 30500N | 1.05 |
| R107FRF77-Y1.1KW | 544 | 1.1KW | 2.60r/min | 3610N.m | 209kg | 32700N | 1.20 |
| R107FRF77-Y1.1KW | 492 | 1.1KW | 2.90r/min | 3260N.m | 209kg | 34000N | 1.30 |
| R107FRF77-Y1.1KW | 417 | 1.1KW | 3.40r/min | 2760N.m | 209kg | 35600N | 1.55 |
| R107FRF77-Y1.1KW | 369 | 1.1KW | 3.80r/min | 2470N.m | 209kg | 36200N | 1.75 |
| R107FRF77-Y1.1KW | 323 | 1.1KW | 4.40r/min | 2160N.m | 209kg | 36600N | 2.00 |
| R107FRF77-Y1.1KW | 285 | 1.1KW | 5.00r/min | 1900N.m | 209kg | 36900N | 2.30 |
| R107FRF77-Y1.1KW | 253 | 1.1KW | 5.60r/min | 1670N.m | 209kg | 37100N | 2.60 |
R107FRF77減速機配1.5KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y1.5KW | 528 | 1.5KW | 2.70r/min | 4830N.m | 212kg | 21700N | 0.90 |
| R107FRF77-Y1.5KW | 544 | 1.5KW | 2.60r/min | 4950N.m | 212kg | 15700N | 0.85 |
| R107FRF77-Y1.5KW | 492 | 1.5KW | 2.90r/min | 4470N.m | 212kg | 28500N | 0.95 |
| R107FRF77-Y1.5KW | 417 | 1.5KW | 3.40r/min | 3790N.m | 212kg | 31900N | 1.15 |
| R107FRF77-Y1.5KW | 369 | 1.5KW | 3.90r/min | 3380N.m | 212kg | 33600N | 1.25 |
| R107FRF77-Y1.5KW | 323 | 1.5KW | 4.40r/min | 2960N.m | 212kg | 35100N | 1.45 |
| R107FRF77-Y1.5KW | 469 | 1.5KW | 3.00r/min | 4400N.m | 212kg | 28900N | 1.00 |
R107FRF77減速機配2.2KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y2.2KW | 323 | 2.2KW | 4.40r/min | 4400N.m | 221kg | 28900N | 1.00 |
| R107FRF77-Y2.2KW | 285 | 2.2KW | 5.00r/min | 3870N.m | 221kg | 31600N | 1.10 |
| R107FRF77-Y2.2KW | 253 | 2.2KW | 5.60r/min | 3420N.m | 221kg | 33400N | 1.25 |
| R107FRF77-Y2.2KW | 214 | 2.2KW | 6.60r/min | 2900N.m | 221kg | 35200N | 1.50 |
| R107FRF77-Y2.2KW | 325 | 2.2KW | 4.40r/min | 4490N.m | 221kg | 28400N | 0.95 |
R107FRF77減速機配3KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y3KW | 253 | 3KW | 5.80r/min | 4600N.m | 224kg | 27700N | 0.95 |
| R107FRF77-Y3KW | 214 | 3KW | 6.80r/min | 3900N.m | 224kg | 31500N | 1.10 |
| R107FRF77-Y3KW | 187 | 3KW | 7.80r/min | 3400N.m | 224kg | 33500N | 1.25 |
| R107FRF77-Y3KW | 256 | 3KW | 5.70r/min | 4730N.m | 224kg | 25500N | 0.90 |
R107FRF77減速機配4KW電機參數
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R107FRF77-Y4KW | 187 | 4KW | 7.80r/min | 4550N.m | 235kg | 28000N | 0.95 |
| R107FRF77-Y4KW | 193 | 4KW | 7.60r/min | 4750N.m | 235kg | 24700N | 0.90 |
| R107FRF77-Y4KW | 172 | 4KW | 8.50r/min | 4250N.m | 235kg | 29700N | 1.00 |
R108R78減速電機減速比：1:172減速電機,1:187減速電機,1:193減速電機,1:214減速電機,1:253減速電機,1:256減速電機,1:285減速電機,1:323齒輪減速馬達,1:325減速電機,1:369減速電機,1:417減速電機,1:469減速電機,1:492減速電機,1:528減速電機,1:544減速電機,1:614減速電機,1:626減速電機,1:717減速電機,1:815減速電機,1:822減速電機,1:919減速電機,1:939減速電機,1:1055減速電機,1:1104減速電機,1:1209減速電機,1:1226減速電機,1:1400減速電機,1:1407減速電機,1:1550減速電機,1:1599減速電機,1:1693減速電機,1:1827減速電機,1:1987減速電機,1:2067減速電機,1:2280減速電機,1:2653減速電機,1:3034減速電機,1:3039減速電機,1:3343減速電機,1:3896減速電機,1:3918減速電機,1:4435減速電機,1:5168減速電機,1:5914減速電機,1:6743減速電機,1:7583減速電機。

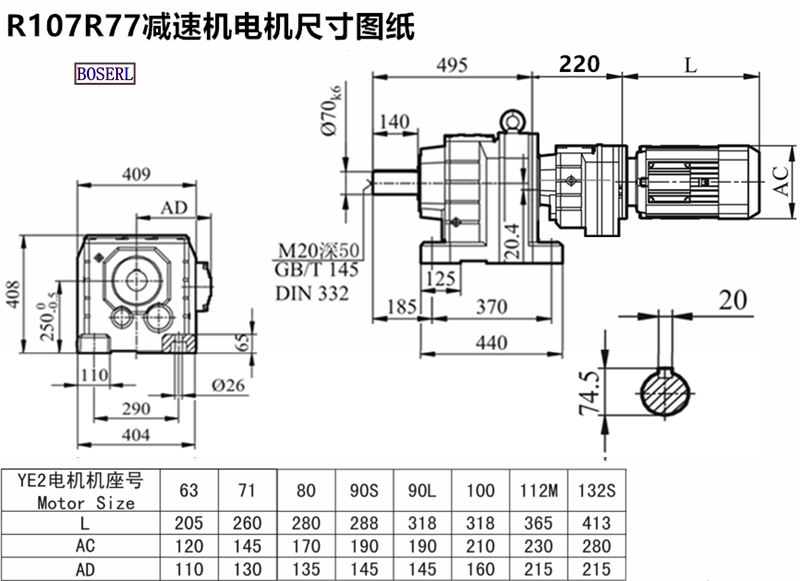

R108R78減速機電機安裝尺寸：輸出軸Φ70+鍵4.5（可定做），高408*寬404*長715（帶輸出軸）
R108R78減速箱輸出轉數：0.18rpm/min減速箱,0.2rpm/min減速箱,0.23rpm/min減速箱,0.27rpm/min減速箱,0.3rpm/min減速箱,0.31rpm/min減速箱,0.34rpm/min減速箱,0.35rpm/min減速箱,0.39rpm/min減速箱,0.41rpm/min減速箱,0.43rpm/min減速箱,0.44rpm/min減速箱,0.45rpm/min臥式減速機,0.5rpm/min減速箱,0.52rpm/min減速箱,0.58rpm/min減速箱,0.61rpm/min減速箱,0.64rpm/min減速箱,0.65rpm/min減速箱,0.66rpm/min減速箱,0.67rpm/min減速箱,0.69rpm/min減速箱,0.71rpm/min減速箱,0.72rpm/min減速箱,0.76rpm/min減速箱,0.81rpm/min減速箱,0.82rpm/min減速箱,0.83rpm/min減速箱,0.86rpm/min減速箱,0.89rpm/min減速箱,0.93rpm/min減速箱,0.94rpm/min減速箱,0.98rpm/min減速箱,0.99rpm/min減速箱,1.1rpm/min減速箱,1.2rpm/min減速箱,1.3rpm/min減速箱,1.4rpm/min減速箱,1.5rpm/min減速箱,1.6rpm/min減速箱,1.7rpm/min減速箱,1.8rpm/min減速箱,1.9rpm/min減速箱,2rpm/min減速箱,2.2rpm/min減速箱,2.3rpm/min減速箱,2.6rpm/min減速箱,2.7rpm/min減速箱,2.9rpm/min減速箱,3rpm/min減速箱,3.4rpm/min減速箱,3.8rpm/min減速箱,3.9rpm/min減速箱,4.4rpm/min減速箱,5rpm/min減速箱,5.6rpm/min減速箱,5.7rpm/min減速箱,5.8rpm/min減速箱,6.6rpm/min減速箱,6.8rpm/min減速箱,7.6rpm/min減速箱,7.8rpm/min減速箱,8.5rpm/min減速箱。
R108R78減速馬達電機輸出扭矩：1220Nm減速馬達,1230Nm減速馬達,1290Nm減速馬達,1430Nm減速馬達,1590Nm減速馬達,1640Nm減速馬達,1670Nm減速馬達,1790Nm減速馬達,1800Nm減速馬達,1840Nm減速馬達,1870Nm減速馬達,1900Nm減速馬達,1910Nm減速馬達,2070Nm減速馬達,2100Nm減速馬達,2120Nm減速馬達,2140Nm減速馬達,2160Nm減速馬達,2210Nm減速馬達,2260Nm減速馬達,2330Nm減速馬達,2400Nm減速馬達,2430Nm減速馬達,2450Nm減速馬達,2470Nm減速馬達,2530Nm減速馬達,2660Nm減速馬達,2670Nm減速馬達,2750Nm減速馬達,2760Nm減速馬達,2780Nm減速馬達,2790Nm減速馬達,2820Nm減速馬達,2850Nm減速馬達,2900Nm減速馬達,2960Nm減速馬達,3090Nm減速馬達,3100Nm減速馬達,3110Nm減速馬達,3170Nm減速馬達,3220Nm減速馬達,3260Nm減速馬達,3380Nm減速馬達,3400Nm減速馬達,3420Nm減速馬達,3490Nm減速馬達,3560Nm減速馬達,3590Nm減速馬達,3610Nm減速馬達,3660Nm減速馬達,3670Nm減速馬達,3680Nm減速馬達,3690Nm減速馬達,3790Nm減速馬達,3870Nm減速馬達,3900Nm減速馬達,3980Nm減速馬達,4030Nm減速馬達,4080Nm減速馬達,4090Nm減速馬達,4110Nm減速馬達,4140Nm減速馬達,4210Nm減速馬達,4250Nm減速馬達,4400Nm減速馬達,4410Nm減速馬達,4450Nm減速馬達,4470Nm減速馬達,4490Nm減速馬達,4550Nm減速馬達,4600Nm減速馬達,4660Nm減速馬達,4730Nm減速馬達,4740Nm減速馬達,4750Nm減速馬達,4780Nm減速馬達,4830Nm減速馬達,4850Nm減速馬達,4950Nm減速馬達。

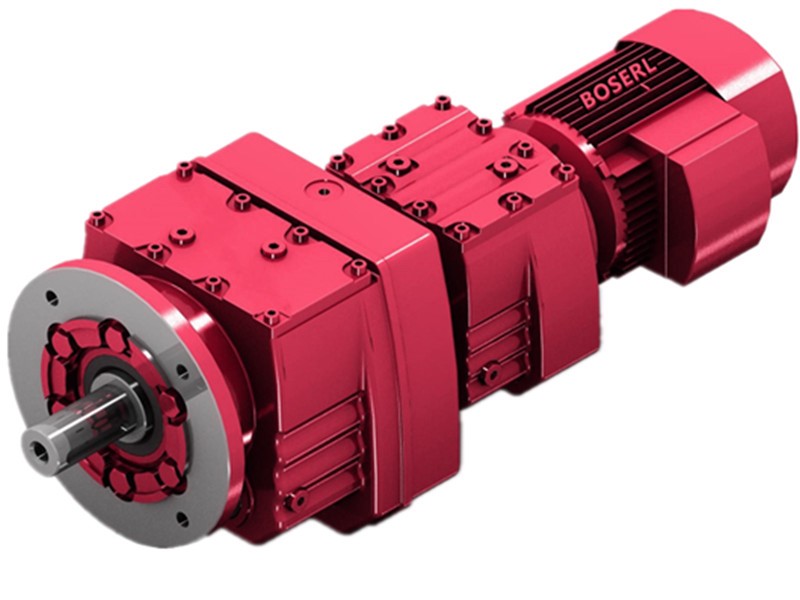

R108R78減速機電機各種輸出實物圖：
R108R78減速機型號：
R107FR77DM100L4,R107FR77DM100LC4,R107FR77DM100LS4,R107FR77DM100M4,R107FR77DM112M4,R107FR77DM63L4,R107FR77DM63M4,R107FR77DM63MS4,R107FR77DM63S4,R107FR77DM71D4,R107FR77DM71M4,R107FR77DM71MS4,R107FR77DM71S4,R107FR77DM80K4,R107FR77DM80M4,R107FR77DM80MK4,R107FR77DM80N4,R107FR77DM80S4,R107FR77DM90L4,R107FR77DM90M4,R107FR77DM90S4,R107FR77DR100L4,R107FR77DR100LC4,R107FR77DR100LS4,R107FR77DR100M4,R107FR77DR112M4,R107FR77DR63L4,R107FR77DR63M4,R107FR77DR63MS4,R107FR77DR63S4,R107FR77DR71D4,R107FR77DR71M4,R107FR77DR71MS4,R107FR77DR71S4,R107FR77DR80K4,R107FR77DR80M4,R107FR77DR80MK4,R107FR77DR80N4,R107FR77DR80S4,R107FR77DR90L4,R107FR77DR90M4,R107FR77DR90S4,R107FR77DRE100L4,R107FR77DRE100LC4,R107FR77DRE100LS4,R107FR77DRE100M4,R107FR77DRE112M4,R107FR77DRE63L4,R107FR77DRE63M4,R107FR77DRE63MS4,R107FR77DRE63S4,R107FR77DRE71D4,R107FR77DRE71M4,R107FR77DRE71MS4,R107FR77DRE71S4,R107FR77DRE80K4,R107FR77DRE80M4,R107FR77DRE80MK4,R107FR77DRE80N4,R107FR77DRE80S4,R107FR77DRE90L4,R107FR77DRE90M4,R107FR77DRE90S4,R107FR77DRN100L4,R107FR77DRN100LC4,R107FR77DRN100LS4,R107FR77DRN100M4,R107FR77DRN112M4,R107FR77DRN63L4,R107FR77DRN63M4,R107FR77DRN63MS4,R107FR77DRN63S4,R107FR77DRN71D4,R107FR77DRN71M4,R107FR77DRN71MS4,R107FR77DRN71S4,R107FR77DRN80K4,R107FR77DRN80M4,R107FR77DRN80MK4,R107FR77DRN80N4,R107FR77DRN80S4,R107FR77DRN90L4,R107FR77DRN90M4,R107FR77DRN90S4,R107FR77DRS100L4,R107FR77DRS100LC4,R107FR77DRS100LS4,R107FR77DRS100M4,R107FR77DRS112M4,R107FR77DRS63L4,R107FR77DRS63M4,R107FR77DRS63MS4,R107FR77DRS63S4,R107FR77DRS71D4,R107FR77DRS71M4,R107FR77DRS71MS4,R107FR77DRS71S4,R107FR77DRS80K4,R107FR77DRS80M4,R107FR77DRS80MK4,R107FR77DRS80N4,R107FR77DRS80S4,R107FR77DRS90L4,R107FR77DRS90M4,R107FR77DRS90S4,R107FR77DT100L4,R107FR77DT100LC4,R107FR77DT100LS4,R107FR77DT100M4,R107FR77DT112M4,R107FR77DT63L4,R107FR77DT63M4,R107FR77DT63MS4,R107FR77DT63S4,R107FR77DT71D4,R107FR77DT71M4,R107FR77DT71MS4,R107FR77DT71S4,R107FR77DT80K4,R107FR77DT80M4,R107FR77DT80MK4,R107FR77DT80N4,R107FR77DT80S4,R107FR77DT90L4,R107FR77DT90M4,R107FR77DT90S4,R107FR77DV100L4,R107FR77DV100LC4,R107FR77DV100LS4,R107FR77DV100M4,R107FR77DV112M4,R107FR77DV63L4,R107FR77DV63M4,R107FR77DV63MS4,R107FR77DV63S4,R107FR77DV71D4,R107FR77DV71M4,R107FR77DV71MS4,R107FR77DV71S4,R107FR77DV80K4,R107FR77DV80M4,R107FR77DV80MK4,R107FR77DV80N4,R107FR77DV80S4,R107FR77DV90L4,R107FR77DV90M4,R107FR77DV90S4,R107FR77DVE100L4,R107FR77DVE100LC4,R107FR77DVE100LS4,R107FR77DVE100M4,R107FR77DVE112M4,R107FR77DVE63L4,R107FR77DVE63M4,R107FR77DVE63MS4,R107FR77DVE63S4,R107FR77DVE71D4,R107FR77DVE71M4,R107FR77DVE71MS4,R107FR77DVE71S4,R107FR77DVE80K4,R107FR77DVE80M4,R107FR77DVE80MK4,R107FR77DVE80N4,R107FR77DVE80S4,R107FR77DVE90L4,R107FR77DVE90M4,R107FR77DVE90S4,R107FRF77-Y0.12KW,R107FRF77-Y0.18KW,R107FRF77-Y0.25KW,R107FRF77-Y0.37KW,R107FRF77-Y0.37KW,R107FRF77-Y0.55KW,R107FRF77-Y0.75KW,R107FRF77-Y1.1KW,R107FRF77-Y1.5KW,R107FRF77-Y2.2KW,R107FRF77-Y3KW,R107FRF77-Y4KW,R107FRF77-YEJ0.12KW,R107FRF77-YEJ0.18KW,R107FRF77-YEJ0.25KW,R107FRF77-YEJ0.37KW,R107FRF77-YEJ0.55KW,R107FRF77-YEJ0.75KW,R107FRF77-YEJ1.1KW,R107FRF77-YEJ1.5KW,R107FRF77-YEJ2.2KW,R107FRF77-YEJ3KW,R107FRF77-YEJ4KW,R107FRF77-YVP0.12KW,R107FRF77-YVP0.18KW,R107FRF77-YVP0.25KW,R107FRF77-YVP0.55KW,R107FRF77-YVP0.75KW,R107FRF77-YVP1.1KW,R107FRF77-YVP1.5KW,R107FRF77-YVP2.2KW,R107FRF77-YVP3KW,R107FRF77-YVP4KW,R107FRF77-YVPEJ0.12KW,R107FRF77-YVPEJ0.18KW,R107FRF77-YVPEJ0.25KW,R107FRF77-YVPEJ0.37KW,R107FRF77-YVPEJ0.55KW,R107FRF77-YVPEJ0.75KW,R107FRF77-YVPEJ1.1KW,R107FRF77-YVPEJ1.5KW,R107FRF77-YVPEJ2.2KW,R107FRF77-YVPEJ3KW,R107FRF77-YVPEJ4KW。
R108R78減速電機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.ji-jun.com/product/list-rxiliejiansuji-cn.html
推薦型號：R108減速機
關鍵詞:同向減速機臥式配電機一體式_R系列減速電機_R系列減速機_R系列減速器_同向減速器_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R18減速機,R28減速機,R38減速機,R48減速機,R58減速機,R68減速機,R78減速機,R88減速機,R98減速機,R108減速機,R138減速機,R148減速機,R168減速機
R系列齒輪減速馬達可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R107FRF77-Y0.12KW R107FRF77-Y0.18KW R107FRF77-Y0.25KW R107FRF77-Y0.37KW R107FRF77-Y0.55KW R107FRF77-Y0.75KW R107FRF77-Y1.1KW R107FRF77-Y1.5KW R107FRF77-Y2.2KW R107FRF77-Y3KW R107FRF77-Y4KW
