SF48減速機詳細信息

prevnext

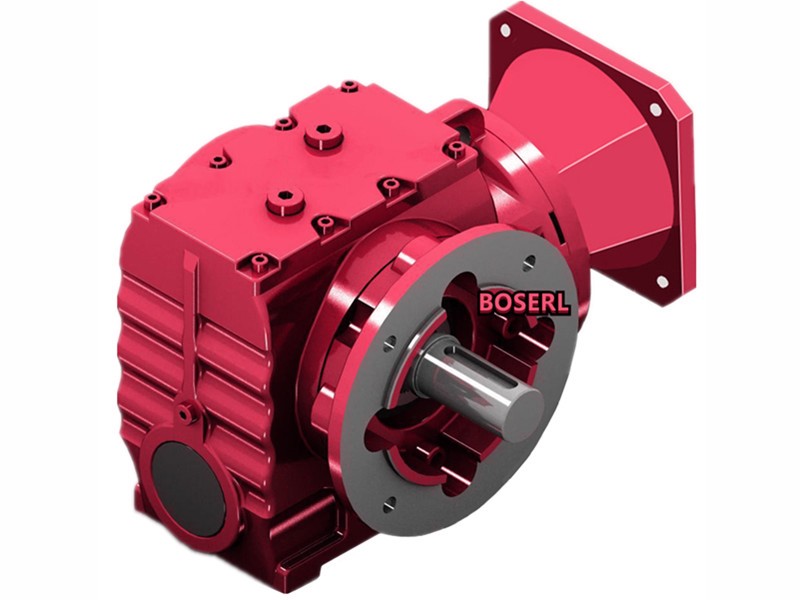

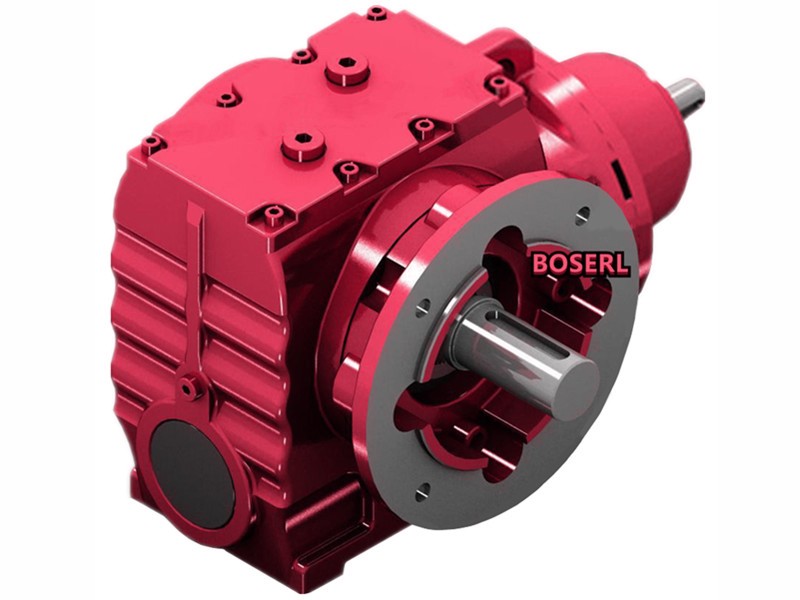

SF48減速機

訂購熱線：13360667204
  1. 詳細信息

SF48減速機傳動比計算：齒輪減速馬達

上料機參數：齒輪直徑150，拖動1200kg，一分鐘運行65米

65米÷（0.15齒輪直徑X3.14）=138轉每分鐘

1200kg換算成扭矩=1176N.m

1176N.m×0.075齒輪半徑=88.2N.m

電機轉數1400÷輸出轉數138=10.14比

88.2N.m輸出扭矩÷10.14比=8.698N.m電機扭矩

8.698N.m電機扭矩?fù)Q算成功率1.38KW以上

對應的SF48減速機選型參數：

型號：SF48-BEJ1.5KW

減速比：10.8

輸出轉數：132轉每分鐘

輸出扭矩：97N.m

安全系數：1.1

SF48減速機平面圖紙：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機蝸輪蝸桿減速機


SF48斜齒輪渦輪渦桿減速機型號：



SF48系列減速機參數大全：自鎖減速機

SF48減速機配0.12KW電機參數

型號功率轉數扭矩安全系數
S47Y0.12KW0.12KW6.90rpm95N.m1.80
S47Y0.12KW0.12KW7.50rpm89N.m1.90
S47Y0.12KW0.12KW8.70rpm77N.m2.20
S47Y0.12KW0.12KW10.0rpm68N.m2.50
S47Y0.12KW0.12KW11.0rpm64N.m2.60
S47Y0.12KW0.12KW12.0rpm57N.m3.00

SF48減速機配0.18KW電機參數

型號功率轉數扭矩安全系數
S47Y0.18KW0.18KW6.60rpm149N.m1.15
S47Y0.18KW0.18KW7.10rpm138N.m1.25
S47Y0.18KW0.18KW8.40rpm121N.m1.40
S47Y0.18KW0.18KW9.60rpm106N.m1.60
S47Y0.18KW0.18KW10.0rpm100N.m1.65
S47Y0.18KW0.18KW12.0rpm88N.m1.90
S47Y0.18KW0.18KW14.0rpm77N.m2.20
S47Y0.18KW0.18KW16.0rpm69N.m2.40
S47Y0.18KW0.18KW18.0rpm60N.m2.80
S47Y0.18KW0.18KW19.0rpm69N.m2.20

SF48減速機配0.25KW電機參數

型號功率轉數扭矩安全系數
S47Y0.25KW0.25KW6.50rpm205N.m0.80
S47Y0.25KW0.25KW7.00rpm194N.m0.85
S47Y0.25KW0.25KW8.20rpm170N.m1.00
S47Y0.25KW0.25KW99.50rpm150N.m1.10
S47Y0.25KW0.25KW10.0rpm141N.m1.20
S47Y0.25KW0.25KW12.0rpm124N.m1.35
S47Y0.25KW0.25KW14.0rpm108N.m1.55
S47Y0.25KW0.25KW15.0rpm98N.m1.70
S47Y0.25KW0.25KW18.0rpm85N.m1.95
S47Y0.25KW0.25KW19.0rpm97N.m1.60
S47Y0.25KW0.25KW19.0rpm80N.m2.10
S47Y0.25KW0.25KW20.0rpm90N.m1.70
S47Y0.25KW0.25KW24.0rpm78N.m2.00
S47Y0.25KW0.25KW27.0rpm68N.m2.30

SF48減速機配0.37KW電機參數

型號功率轉數扭矩安全系數
S47Y0.37KW0.37KW10.0rpm210N.m0.80
S47Y0.37KW0.37KW11.0rpm198N.m0.85
S47Y0.37KW0.37KW12.0rpm175N.m0.95
S47Y0.37KW0.37KW15.0rpm151N.m1.10
S47Y0.37KW0.37KW16.0rpm137N.m1.20
S47Y0.37KW0.37KW19.0rpm119N.m1.40
S47Y0.37KW0.37KW20.0rpm136N.m1.15
S47Y0.37KW0.37KW21.0rpm112N.m1.50
S47Y0.37KW0.37KW22.0rpm126N.m1.25
S47Y0.37KW0.37KW25.0rpm109N.m1.40
S47Y0.37KW0.37KW29.0rpm96N.m1.60
S47Y0.37KW0.37KW31.0rpm90N.m1.75
S47Y0.37KW0.37KW36.0rpm78N.m2.00
S47Y0.37KW0.37KW42.0rpm67N.m2.30
S47Y0.37KW0.37KW48.0rpm60N.m2.60
S47Y0.37KW0.37KW56.0rpm52N.m3.00
S47Y0.37KW0.37KW59.0rpm49N.m3.10
S47Y0.37KW0.37KW68.0rpm46N.m2.40
S47Y0.37KW0.37KW78.0rpm40N.m2.80
S47Y0.37KW0.37KW84.0rpm37N.m3.00

SF48減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
S47Y0.55KW0.55KW16.0rpm200N.m0.80
S47Y0.55KW0.55KW19.0rpm177N.m0.95
S47Y0.55KW0.55KW21.0rpm167N.m1.00
S47Y0.55KW0.55KW25.0rpm162N.m0.95
S47Y0.55KW0.55KW29.0rpm142N.m1.10
S47Y0.55KW0.55KW31.0rpm133N.m1.15
S47Y0.55KW0.55KW36.0rpm116N.m1.35
S47Y0.55KW0.55KW42.0rpm100N.m1.55
S47Y0.55KW0.55KW48.0rpm90N.m1.75
S47Y0.55KW0.55KW56.0rpm77N.m2.00
S47Y0.55KW0.55KW59.0rpm73N.m2.10
S47Y0.55KW0.55KW68.0rpm68N.m1.60
S47Y0.55KW0.55KW78.0rpm59N.m1.85
S47Y0.55KW0.55KW84.0rpm56N.m2.00
S47Y0.55KW0.55KW97.0rpm48N.m2.30
S47Y0.55KW0.55KW114rpm41N.m2.60
S47Y0.55KW0.55KW128rpm37N.m3.00
S47Y0.55KW0.55KW150rpm32N.m3.40

SF48減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
S47Y0.75KW0.75KW30.0rpm187N.m0.85
S47Y0.75KW0.75KW32.0rpm175N.m0.90
S47Y0.75KW0.75KW38.0rpm153N.m1.00
S47Y0.75KW0.75KW44.0rpm131N.m1.20
S47Y0.75KW0.75KW49.0rpm118N.m1.30
S47Y0.75KW0.75KW58.0rpm102N.m1.55
S47Y0.75KW0.75KW62.0rpm96N.m1.60
S47Y0.75KW0.75KW71.0rpm89N.m1.25
S47Y0.75KW0.75KW81.0rpm78N.m1.40
S47Y0.75KW0.75KW87.0rpm73N.m1.50
S47Y0.75KW0.75KW101rpm63N.m1.75
S47Y0.75KW0.75KW119rpm54N.m2.00
S47Y0.75KW0.75KW133rpm48N.m2.20
S47Y0.75KW0.75KW156rpm42N.m2.60
S47Y0.75KW0.75KW166rpm39N.m2.80
S47Y0.75KW0.75KW197rpm33N.m3.10

SF48減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
S47Y1.1KW1.1KW49.0rpm175N.m0.90
S47Y1.1KW1.1KW57.0rpm151N.m1.05
S47Y1.1KW1.1KW61.0rpm142N.m1.05
S47Y1.1KW1.1KW73.0rpm120N.m1.20
S47Y1.1KW1.1KW81.0rpm115N.m0.95
S47Y1.1KW1.1KW86.0rpm108N.m1.00
S47Y1.1KW1.1KW100rpm94N.m1.15
S47Y1.1KW1.1KW117rpm80N.m1.35
S47Y1.1KW1.1KW131rpm72N.m1.50
S47Y1.1KW1.1KW154rpm62N.m1.75
S47Y1.1KW1.1KW164rpm58N.m1.90
S47Y1.1KW1.1KW195rpm49N.m2.10

SF48減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
S47Y1.5KW1.5KW100rpm127N.m0.85
S47Y1.5KW1.5KW118rpm108N.m1.00
S47Y1.5KW1.5KW132rpm97N.m1.10
S47Y1.5KW1.5KW155rpm83N.m1.30
S47Y1.5KW1.5KW166rpm78N.m1.40
S47Y1.5KW1.5KW196rpm66N.m1.55

SF48減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：S48減速機

關鍵詞:GSF系列減速機配電機一體式_蝸輪蝸桿減速機制造廠家_伺服電機蝸輪蝸桿減速機_SF系列減速機_伺服蝸輪蝸桿減速機_SF系列減速器_伺服電機蝸輪蝸桿減速器_伺服蝸輪蝸桿減速器

SF系列減速機型號：SF38減速機,SF48減速機,SF58減速機,SF68減速機,SF78減速機,SF88減速機,SF98齒輪減速馬達

SF系列自鎖減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-22KW之間


如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求



標簽:   SF48減速機 SF47斜齒輪渦輪渦桿減速機 SF47系列減速機 SF47減速機傳動比 SF47減速機選型參數 SF47減速機CAD三維圖

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
SF48減速機CAD三維圖紙下載 點擊下載
SF48減速機選型參數下載 點擊下載
