F28減速電機詳細信息

prevnext

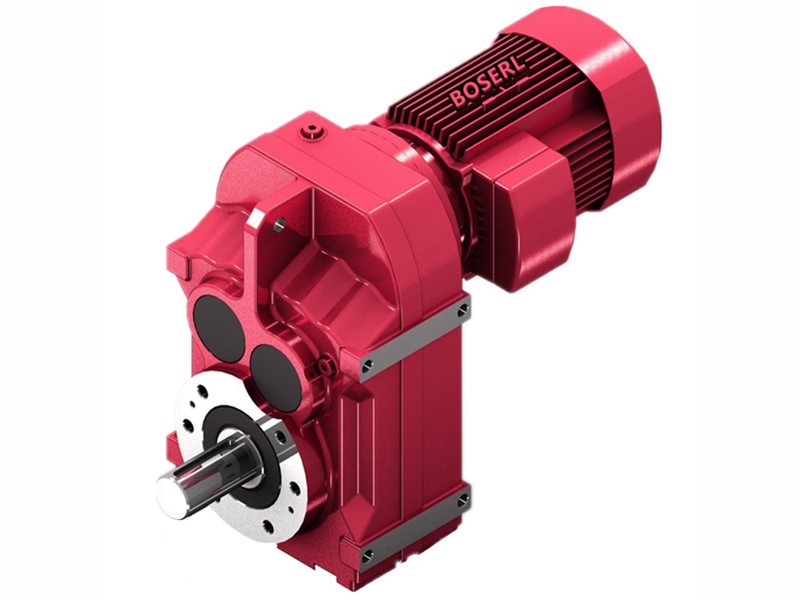

F28減速電機

訂購熱線：13360667204
  1. 詳細信息

F28減速電機基座參數計算公式：齒輪減速馬達

無動力滾筒輸送機參數：帶動物料1200Kg，轉桶直徑φ47mm，運行速度0.13m/s

運輸速度0.13m×60s=7.8m每分鐘

3.14(圓周率)×0.047m(轉桶直徑47mm)=0.14758m

7.8m÷0.14758m=52.85r/min輸出轉數

輸送物料1200Kg換算成N=11760n

11760n×0.0235轉桶半徑×0.06摩擦系數=16.58×2=33.16N.m輸出扭矩

1400電機輸入轉速÷52.85r/min=26.49減速比

33.16N.m輸出扭矩÷26.49減速比=1.25N.m電機扭矩

1.25N.m電機扭矩換算成電機功率=0.2KW左右

對應的F28減速電機功率型號：

型號：F28-B0.25KW

減速比：27.18

輸出轉數：48轉每分鐘

輸出扭矩：50N.m

安全系數：2.6

F28減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機

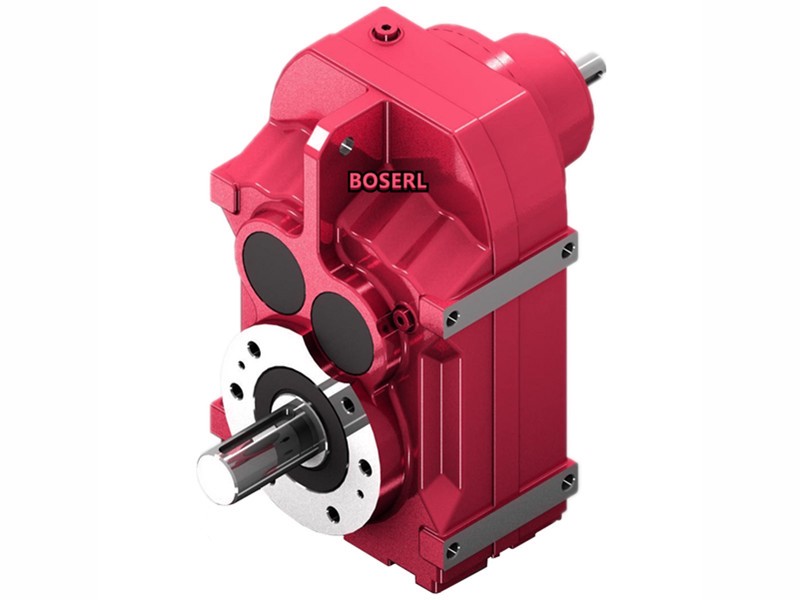

F28斜齒輪平行軸減速機型號：



F28減速電機型號參數：F系列減速機

F28減速機配0.12KW電機參數

型號功率轉數扭矩安全系數
F27Y0.12KW0.12KW9.80rpm117N.m1.10
F27Y0.12KW0.12KW11.0rpm107N.m1.20
F27Y0.12KW0.12KW13.0rpm91N.m1.40
F27Y0.12KW0.12KW15.0rpm79N.m1.65
F27Y0.12KW0.12KW16.0rpm73N.m1.75
F27Y0.12KW0.12KW18.0rpm64N.m2.00
F27Y0.12KW0.12KW19.0rpm60N.m2.20
F27Y0.12KW0.12KW22.0rpm53N.m2.40
F27Y0.12KW0.12KW24.0rpm47N.m2.80
F27Y0.12KW0.12KW28.0rpm42N.m3.10
F27Y0.12KW0.12KW30.0rpm39N.m3.40
F27Y0.12KW0.12KW34.0rpm34N.m3.80
F27Y0.12KW0.12KW36.0rpm32N.m4.10
F27Y0.12KW0.12KW41.0rpm28N.m4.60
F27Y0.12KW0.12KW47.0rpm24N.m5.30
F27Y0.12KW0.12KW51.0rpm23N.m5.80
F27Y0.12KW0.12KW59.0rpm19N.m6.70
F27Y0.12KW0.12KW68.0rpm17N.m7.80
F27Y0.12KW0.12KW73.0rpm16N.m8.30
F27Y0.12KW0.12KW85.0rpm14N.m9.60
F27Y0.12KW0.12KW100rpm12N.m11.0
F27Y0.12KW0.12KW112rpm10N.m13.0
F27Y0.12KW0.12KW131rpm8.8N.m15.0
F27Y0.12KW0.12KW140rpm8.2N.m16.0
F27Y0.12KW0.12KW147rpm7.8N.m17.0
F27Y0.12KW0.12KW170rpm6.7N.m18.0
F27Y0.12KW0.12KW200rpm5.7N.m20.0
F27Y0.12KW0.12KW224rpm5.1N.m21.0
F27Y0.12KW0.12KW262rpm4.4N.m23.0
F27Y0.12KW0.12KW280rpm4.1N.m23.0
F27Y0.12KW0.12KW332rpm3.5N.m25.0

F28減速機配0.18KW電機參數

型號功率轉數扭矩安全系數
F27Y0.18KW0.18KW12.0rpm143N.m0.90
F27Y0.18KW0.18KW14.0rpm123N.m1.05
F27Y0.18KW0.18KW15.0rpm115N.m1.15
F27Y0.18KW0.18KW17.0rpm100N.m1.30
F27Y0.18KW0.18KW18.0rpm94N.m1.40
F27Y0.18KW0.18KW21.0rpm83N.m1.55
F27Y0.18KW0.18KW23.0rpm74N.m1.75
F27Y0.18KW0.18KW26.0rpm65N.m2.00
F27Y0.18KW0.18KW28.0rpm61N.m2.10
F27Y0.18KW0.18KW32.0rpm53N.m2.40
F27Y0.18KW0.18KW34.0rpm50N.m2.60
F27Y0.18KW0.18KW39.0rpm44N.m3.00
F27Y0.18KW0.18KW45.0rpm38N.m3.40
F27Y0.18KW0.18KW49.0rpm35N.m3.70
F27Y0.18KW0.18KW57.0rpm30N.m4.30
F27Y0.18KW0.18KW65.0rpm26N.m5.00
F27Y0.18KW0.18KW70.0rpm24N.m5.30
F27Y0.18KW0.18KW81.0rpm21N.m6.10
F27Y0.18KW0.18KW95.0rpm18N.m7.20
F27Y0.18KW0.18KW107rpm16N.m8.10
F27Y0.18KW0.18KW125rpm14N.m9.50
F27Y0.18KW0.18KW134rpm13N.m10.0
F27Y0.18KW0.18KW140rpm12N.m11.0
F27Y0.18KW0.18KW162rpm11N.m12.0
F27Y0.18KW0.18KW191rpm9N.m13.0
F27Y0.18KW0.18KW214rpm8N.m14.0
F27Y0.18KW0.18KW251rpm6.9N.m14.0
F27Y0.18KW0.18KW268rpm6.4N.m15.0
F27Y0.18KW0.18KW318rpm5.4N.m16.0

F28減速機配0.25KW電機參數

型號功率轉數扭矩安全系數
F27Y0.25KW0.25KW17.0rpm142N.m0.90
F27Y0.25KW0.25KW18.0rpm133N.m1.00
F27Y0.25KW0.25KW20.0rpm117N.m1.10
F27Y0.25KW0.25KW23.0rpm104N.m1.25
F27Y0.25KW0.25KW26.0rpm92N.m1.40
F27Y0.25KW0.25KW28.0rpm86N.m1.50
F27Y0.25KW0.25KW32.0rpm75N.m1.75
F27Y0.25KW0.25KW34.0rpm70N.m1.85
F27Y0.25KW0.25KW38.0rpm62N.m2.10
F27Y0.25KW0.25KW44.0rpm54N.m2.40
F27Y0.25KW0.25KW48.0rpm50N.m2.60
F27Y0.25KW0.25KW56.0rpm43N.m3.00
F27Y0.25KW0.25KW64.0rpm37N.m3.50
F27Y0.25KW0.25KW69.0rpm35N.m3.80
F27Y0.25KW0.25KW80.0rpm30N.m4.40
F27Y0.25KW0.25KW94.0rpm25N.m5.10
F27Y0.25KW0.25KW105rpm23N.m5.70
F27Y0.25KW0.25KW123rpm19N.m6.70
F27Y0.25KW0.25KW132rpm18N.m7.20
F27Y0.25KW0.25KW138rpm17N.m7.50
F27Y0.25KW0.25KW160rpm15N.m8.30
F27Y0.25KW0.25KW188rpm13N.m9.00
F27Y0.25KW0.25KW211rpm11N.m9.60
F27Y0.25KW0.25KW247rpm9.7N.m10.0
F27Y0.25KW0.25KW264rpm9.1N.m11.0
F27Y0.25KW0.25KW313rpm7.6N.m11.0

F28減速機配0.37KW電機參數

型號功率轉數扭矩安全系數
F27Y0.37KW0.37KW24.0rpm145N.m0.90
F27Y0.37KW0.37KW28.0rpm128N.m1.00
F27Y0.37KW0.37KW30.0rpm120N.m1.10
F27Y0.37KW0.37KW34.0rpm105N.m1.25
F27Y0.37KW0.37KW36.0rpm98N.m1.35
F27Y0.37KW0.37KW41.0rpm87N.m1.50
F27Y0.37KW0.37KW47.0rpm76N.m1.70
F27Y0.37KW0.37KW51.0rpm70N.m1.85
F27Y0.37KW0.37KW59.0rpm60N.m2.20
F27Y0.37KW0.37KW68.0rpm52N.m2.50
F27Y0.37KW0.37KW73.0rpm48N.m2.70
F27Y0.37KW0.37KW85.0rpm42N.m3.10
F27Y0.37KW0.37KW100rpm35N.m3.70
F27Y0.37KW0.37KW112rpm32N.m4.10
F27Y0.37KW0.37KW131rpm27N.m4.80
F27Y0.37KW0.37KW140rpm25N.m5.10
F27Y0.37KW0.37KW147rpm24N.m5.40
F27Y0.37KW0.37KW170rpm21N.m5.90
F27Y0.37KW0.37KW200rpm18N.m6.40
F27Y0.37KW0.37KW224rpm16N.m6.90
F27Y0.37KW0.37KW262rpm14N.m7.40
F27Y0.37KW0.37KW280rpm13N.m7.60
F27Y0.37KW0.37KW332rpm11N.m8.20

F28減速機配0.55KW電機參數

型號功率轉數扭矩安全系數
F27Y0.55KW0.55KW59.0rpm88N.m1.45
F27Y0.55KW0.55KW68.0rpm77N.m1.70
F27Y0.55KW0.55KW73.0rpm72N.m1.80
F27Y0.55KW0.55KW85.0rpm62N.m2.10
F27Y0.55KW0.55KW100rpm53N.m2.50
F27Y0.55KW0.55KW112rpm47N.m2.80
F27Y0.55KW0.55KW131rpm40N.m3.20
F27Y0.55KW0.55KW140rpm38N.m3.50
F27Y0.55KW0.55KW147rpm36N.m3.60
F27Y0.55KW0.55KW170rpm31N.m4.00
F27Y0.55KW0.55KW200rpm26N.m4.30
F27Y0.55KW0.55KW224rpm24N.m4.60
F27Y0.55KW0.55KW262rpm20N.m5.00
F27Y0.55KW0.55KW280rpm19N.m5.10
F27Y0.55KW0.55KW332rpm16N.m5.50

減速機配0.75KW電機參數

型號功率轉數扭矩安全系數
F27Y0.75KW0.75KW62.0rpm116N.m1.10
F27Y0.75KW0.75KW71.0rpm101N.m1.30
F27Y0.75KW0.75KW76.0rpm94N.m1.40
F27Y0.75KW0.75KW88.0rpm81N.m1.60
F27Y0.75KW0.75KW104rpm69N.m1.90
F27Y0.75KW0.75KW116rpm62N.m2.10
F27Y0.75KW0.75KW136rpm53N.m2.50
F27Y0.75KW0.75KW145rpm49N.m2.60
F27Y0.75KW0.75KW153rpm47N.m2.80
F27Y0.75KW0.75KW177rpm41N.m3.00
F27Y0.75KW0.75KW208rpm34N.m3.30
F27Y0.75KW0.75KW233rpm31N.m3.50
F27Y0.75KW0.75KW272rpm26N.m3.80
F27Y0.75KW0.75KW291rpm25N.m3.90
F27Y0.75KW0.75KW345rpm21N.m4.20

F28減速機配1.1KW電機參數

型號功率轉數扭矩安全系數
F27Y1.1KW1.1KW70.0rpm149N.m0.85
F27Y1.1KW1.1KW75.0rpm139N.m0.95
F27Y1.1KW1.1KW87.0rpm120N.m1.10
F27Y1.1KW1.1KW103rpm102N.m1.25
F27Y1.1KW1.1KW115rpm91N.m1.40
F27Y1.1KW1.1KW135rpm78N.m1.65
F27Y1.1KW1.1KW144rpm73N.m1.80
F27Y1.1KW1.1KW151rpm70N.m1.85
F27Y1.1KW1.1KW175rpm60N.m2.00
F27Y1.1KW1.1KW206rpm51N.m2.20
F27Y1.1KW1.1KW230rpm46N.m2.40
F27Y1.1KW1.1KW270rpm39N.m2.60
F27Y1.1KW1.1KW288rpm36N.m2.60
F27Y1.1KW1.1KW342rpm31N.m2.80

減速機配1.5KW電機參數

型號功率轉數扭矩安全系數
F27Y1.5KW1.5KW103rpm139N.m0.95
F27Y1.5KW1.5KW116rpm124N.m1.05
F27Y1.5KW1.5KW136rpm106N.m1.25
F27Y1.5KW1.5KW145rpm99N.m1.30
F27Y1.5KW1.5KW152rpm94N.m1.40
F27Y1.5KW1.5KW176rpm81N.m1.50
F27Y1.5KW1.5KW207rpm69N.m1.65
F27Y1.5KW1.5KW232rpm62N.m1.75
F27Y1.5KW1.5KW271rpm53N.m1.90
F27Y1.5KW1.5KW290rpm49N.m1.95
F27Y1.5KW1.5KW344rpm42N.m2.10

F28減速機配2.2KW電機參數

型號功率轉數扭矩安全系數
F27Y2.2KW2.2KW177rpm119N.m1.10
F27Y2.2KW2.2KW208rpm101N.m1.30
F27Y2.2KW2.2KW233rpm90N.m1.45
F27Y2.2KW2.2KW273rpm77N.m1.70
F27Y2.2KW2.2KW291rpm72N.m1.80
F27Y2.2KW2.2KW354rpm59N.m2.10
F27Y2.2KW2.2KW417rpm50N.m2.30
F27Y2.2KW2.2KW467rpm45N.m2.40
F27Y2.2KW2.2KW547rpm38N.m2.60
F27Y2.2KW2.2KW584rpm36N.m2.70
F27Y2.2KW2.2KW693rpm30N.m2.90

F28減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：F28減速機

關鍵詞:GF型配減速器的電機一體式_F系列減速機_F系列減速器_減速機配電機_配減速器的電機_配減速機的電機_電機配減速機_GF系列減速機_F型減速機_F型平行軸斜齒輪減速機_減速器配電機

F系列齒輪減速馬達型號：F28減速機,F38減速機,F48減速機,F68減速機,F78減速機,F88減速機,F98減速機,F108減速機,F128減速機,F158減速機

F系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:   F28減速電機 F27斜齒輪平行軸減速機 F27減速機功率 F27減速機基座尺寸 F27減速機模型 F27減速機型號參數

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
F28減速電機模型基座尺寸下載 點擊下載
F28減速電機型號參數下載 點擊下載
