網站首頁 > BOSERL減速機 > 平行軸斜齒輪減速馬達 > FA系列齒輪減速馬達

FA28減速電機詳細信息

prevnext

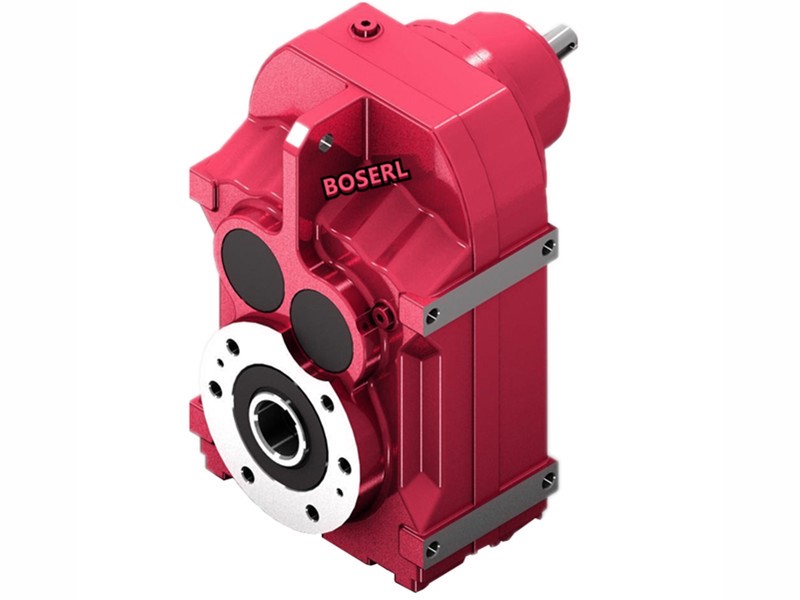

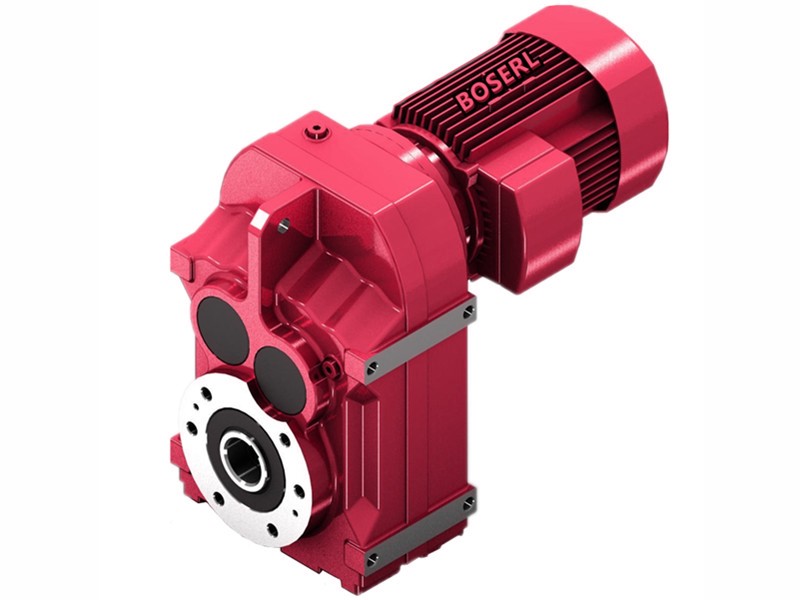

FA28減速電機

訂購熱線：13360667204
  1. 詳細信息

FA28減速電機基座參數計算公式：齒輪減速馬達

滑塊傳送帶參數：承重1300kg，輪子直徑φ48mm，拉動速度0.19m/s

運輸速度0.9m×60s=11.4m每分鐘

3.14(圓周率)×0.048m(輪子直徑48mm)=0.15072m

11.4m÷0.15072m=75.64r/min輸出轉數

輸送物流1300Kg換算成N=12740n

12740n×0.024輪子半徑×0.06摩擦系數=18.35×2=36.7N.m輸出扭矩

1400電機輸入轉速÷75.64r/min=18.5減速比

36.7N.m輸出扭矩÷18.5減速比=1.98N.m電機扭矩

1.98N.m電機扭矩換算成電機功率=0.31KW左右

對應的FA28減速電機功率型號：

型號：FA28-BVP0.37KW

減速比：18.84

輸出轉數：73轉

輸出扭矩：48N.m

安全系數：2.7

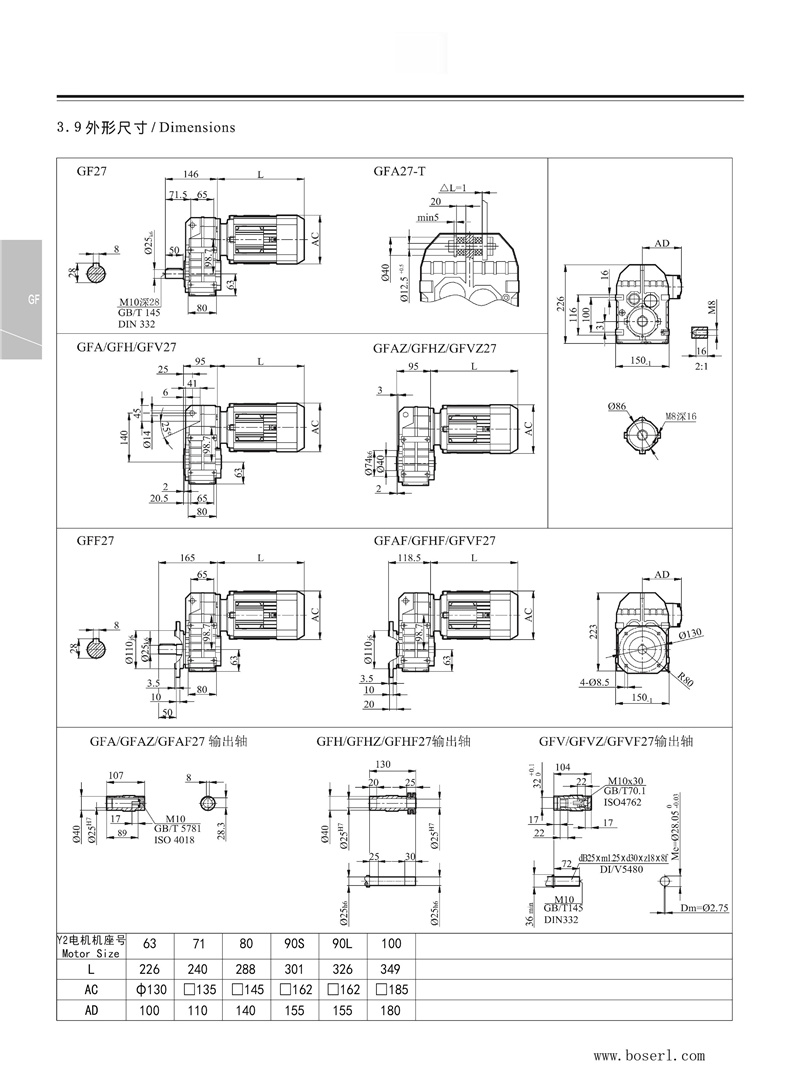

FA28減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）平行軸斜齒輪減速機


FA28平行軸齒輪減速機型號：



FA28減速電機型號參數：分體減速機電機

FA28減速機配0.12KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.12KW0.12KW9.80rpm117N.m1.10
F27Y0.12KW0.12KW11.0rpm107N.m1.20
F27Y0.12KW0.12KW13.0rpm91N.m1.40
F27Y0.12KW0.12KW15.0rpm79N.m1.65
F27Y0.12KW0.12KW16.0rpm73N.m1.75
F27Y0.12KW0.12KW18.0rpm64N.m2.00
F27Y0.12KW0.12KW19.0rpm60N.m2.20
F27Y0.12KW0.12KW22.0rpm53N.m2.40
F27Y0.12KW0.12KW24.0rpm47N.m2.80
F27Y0.12KW0.12KW28.0rpm42N.m3.10
F27Y0.12KW0.12KW30.0rpm39N.m3.40
F27Y0.12KW0.12KW34.0rpm34N.m3.80
F27Y0.12KW0.12KW36.0rpm32N.m4.10
F27Y0.12KW0.12KW41.0rpm28N.m4.60
F27Y0.12KW0.12KW47.0rpm24N.m5.30
F27Y0.12KW0.12KW51.0rpm23N.m5.80
F27Y0.12KW0.12KW59.0rpm19N.m6.70
F27Y0.12KW0.12KW68.0rpm17N.m7.80
F27Y0.12KW0.12KW73.0rpm16N.m8.30
F27Y0.12KW0.12KW85.0rpm14N.m9.60
F27Y0.12KW0.12KW100rpm12N.m11.0
F27Y0.12KW0.12KW112rpm10N.m13.0
F27Y0.12KW0.12KW131rpm8.8N.m15.0
F27Y0.12KW0.12KW140rpm8.2N.m16.0
F27Y0.12KW0.12KW147rpm7.8N.m17.0
F27Y0.12KW0.12KW170rpm6.7N.m18.0
F27Y0.12KW0.12KW200rpm5.7N.m20.0
F27Y0.12KW0.12KW224rpm5.1N.m21.0
F27Y0.12KW0.12KW262rpm4.4N.m23.0
F27Y0.12KW0.12KW280rpm4.1N.m23.0
F27Y0.12KW0.12KW332rpm3.5N.m25.0

FA28減速機配0.18KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.18KW0.18KW12.0rpm143N.m0.90
F27Y0.18KW0.18KW14.0rpm123N.m1.05
F27Y0.18KW0.18KW15.0rpm115N.m1.15
F27Y0.18KW0.18KW17.0rpm100N.m1.30
F27Y0.18KW0.18KW18.0rpm94N.m1.40
F27Y0.18KW0.18KW21.0rpm83N.m1.55
F27Y0.18KW0.18KW23.0rpm74N.m1.75
F27Y0.18KW0.18KW26.0rpm65N.m2.00
F27Y0.18KW0.18KW28.0rpm61N.m2.10
F27Y0.18KW0.18KW32.0rpm53N.m2.40
F27Y0.18KW0.18KW34.0rpm50N.m2.60
F27Y0.18KW0.18KW39.0rpm44N.m3.00
F27Y0.18KW0.18KW45.0rpm38N.m3.40
F27Y0.18KW0.18KW49.0rpm35N.m3.70
F27Y0.18KW0.18KW57.0rpm30N.m4.30
F27Y0.18KW0.18KW65.0rpm26N.m5.00
F27Y0.18KW0.18KW70.0rpm24N.m5.30
F27Y0.18KW0.18KW81.0rpm21N.m6.10
F27Y0.18KW0.18KW95.0rpm18N.m7.20
F27Y0.18KW0.18KW107rpm16N.m8.10
F27Y0.18KW0.18KW125rpm14N.m9.50
F27Y0.18KW0.18KW134rpm13N.m10.0
F27Y0.18KW0.18KW140rpm12N.m11.0
F27Y0.18KW0.18KW162rpm11N.m12.0
F27Y0.18KW0.18KW191rpm9N.m13.0
F27Y0.18KW0.18KW214rpm8N.m14.0
F27Y0.18KW0.18KW251rpm6.9N.m14.0
F27Y0.18KW0.18KW268rpm6.4N.m15.0
F27Y0.18KW0.18KW318rpm5.4N.m16.0

FA28減速機配0.25KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.25KW0.25KW17.0rpm142N.m0.90
F27Y0.25KW0.25KW18.0rpm133N.m1.00
F27Y0.25KW0.25KW20.0rpm117N.m1.10
F27Y0.25KW0.25KW23.0rpm104N.m1.25
F27Y0.25KW0.25KW26.0rpm92N.m1.40
F27Y0.25KW0.25KW28.0rpm86N.m1.50
F27Y0.25KW0.25KW32.0rpm75N.m1.75
F27Y0.25KW0.25KW34.0rpm70N.m1.85
F27Y0.25KW0.25KW38.0rpm62N.m2.10
F27Y0.25KW0.25KW44.0rpm54N.m2.40
F27Y0.25KW0.25KW48.0rpm50N.m2.60
F27Y0.25KW0.25KW56.0rpm43N.m3.00
F27Y0.25KW0.25KW64.0rpm37N.m3.50
F27Y0.25KW0.25KW69.0rpm35N.m3.80
F27Y0.25KW0.25KW80.0rpm30N.m4.40
F27Y0.25KW0.25KW94.0rpm25N.m5.10
F27Y0.25KW0.25KW105rpm23N.m5.70
F27Y0.25KW0.25KW123rpm19N.m6.70
F27Y0.25KW0.25KW132rpm18N.m7.20
F27Y0.25KW0.25KW138rpm17N.m7.50
F27Y0.25KW0.25KW160rpm15N.m8.30
F27Y0.25KW0.25KW188rpm13N.m9.00
F27Y0.25KW0.25KW211rpm11N.m9.60
F27Y0.25KW0.25KW247rpm9.7N.m10.0
F27Y0.25KW0.25KW264rpm9.1N.m11.0
F27Y0.25KW0.25KW313rpm7.6N.m11.0

FA28減速機配0.37KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.37KW0.37KW24.0rpm145N.m0.90
F27Y0.37KW0.37KW28.0rpm128N.m1.00
F27Y0.37KW0.37KW30.0rpm120N.m1.10
F27Y0.37KW0.37KW34.0rpm105N.m1.25
F27Y0.37KW0.37KW36.0rpm98N.m1.35
F27Y0.37KW0.37KW41.0rpm87N.m1.50
F27Y0.37KW0.37KW47.0rpm76N.m1.70
F27Y0.37KW0.37KW51.0rpm70N.m1.85
F27Y0.37KW0.37KW59.0rpm60N.m2.20
F27Y0.37KW0.37KW68.0rpm52N.m2.50
F27Y0.37KW0.37KW73.0rpm48N.m2.70
F27Y0.37KW0.37KW85.0rpm42N.m3.10
F27Y0.37KW0.37KW100rpm35N.m3.70
F27Y0.37KW0.37KW112rpm32N.m4.10
F27Y0.37KW0.37KW131rpm27N.m4.80
F27Y0.37KW0.37KW140rpm25N.m5.10
F27Y0.37KW0.37KW147rpm24N.m5.40
F27Y0.37KW0.37KW170rpm21N.m5.90
F27Y0.37KW0.37KW200rpm18N.m6.40
F27Y0.37KW0.37KW224rpm16N.m6.90
F27Y0.37KW0.37KW262rpm14N.m7.40
F27Y0.37KW0.37KW280rpm13N.m7.60
F27Y0.37KW0.37KW332rpm11N.m8.20

FA28減速機配0.55KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.55KW0.55KW59.0rpm88N.m1.45
F27Y0.55KW0.55KW68.0rpm77N.m1.70
F27Y0.55KW0.55KW73.0rpm72N.m1.80
F27Y0.55KW0.55KW85.0rpm62N.m2.10
F27Y0.55KW0.55KW100rpm53N.m2.50
F27Y0.55KW0.55KW112rpm47N.m2.80
F27Y0.55KW0.55KW131rpm40N.m3.20
F27Y0.55KW0.55KW140rpm38N.m3.50
F27Y0.55KW0.55KW147rpm36N.m3.60
F27Y0.55KW0.55KW170rpm31N.m4.00
F27Y0.55KW0.55KW200rpm26N.m4.30
F27Y0.55KW0.55KW224rpm24N.m4.60
F27Y0.55KW0.55KW262rpm20N.m5.00
F27Y0.55KW0.55KW280rpm19N.m5.10
F27Y0.55KW0.55KW332rpm16N.m5.50

FA28減速機配0.75KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y0.75KW0.75KW62.0rpm116N.m1.10
F27Y0.75KW0.75KW71.0rpm101N.m1.30
F27Y0.75KW0.75KW76.0rpm94N.m1.40
F27Y0.75KW0.75KW88.0rpm81N.m1.60
F27Y0.75KW0.75KW104rpm69N.m1.90
F27Y0.75KW0.75KW116rpm62N.m2.10
F27Y0.75KW0.75KW136rpm53N.m2.50
F27Y0.75KW0.75KW145rpm49N.m2.60
F27Y0.75KW0.75KW153rpm47N.m2.80
F27Y0.75KW0.75KW177rpm41N.m3.00
F27Y0.75KW0.75KW208rpm34N.m3.30
F27Y0.75KW0.75KW233rpm31N.m3.50
F27Y0.75KW0.75KW272rpm26N.m3.80
F27Y0.75KW0.75KW291rpm25N.m3.90
F27Y0.75KW0.75KW345rpm21N.m4.20

FA28減速機配1.1KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y1.1KW1.1KW70.0rpm149N.m0.85
F27Y1.1KW1.1KW75.0rpm139N.m0.95
F27Y1.1KW1.1KW87.0rpm120N.m1.10
F27Y1.1KW1.1KW103rpm102N.m1.25
F27Y1.1KW1.1KW115rpm91N.m1.40
F27Y1.1KW1.1KW135rpm78N.m1.65
F27Y1.1KW1.1KW144rpm73N.m1.80
F27Y1.1KW1.1KW151rpm70N.m1.85
F27Y1.1KW1.1KW175rpm60N.m2.00
F27Y1.1KW1.1KW206rpm51N.m2.20
F27Y1.1KW1.1KW230rpm46N.m2.40
F27Y1.1KW1.1KW270rpm39N.m2.60
F27Y1.1KW1.1KW288rpm36N.m2.60
F27Y1.1KW1.1KW342rpm31N.m2.80

FA28減速機配1.5KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y1.5KW1.5KW103rpm139N.m0.95
F27Y1.5KW1.5KW116rpm124N.m1.05
F27Y1.5KW1.5KW136rpm106N.m1.25
F27Y1.5KW1.5KW145rpm99N.m1.30
F27Y1.5KW1.5KW152rpm94N.m1.40
F27Y1.5KW1.5KW176rpm81N.m1.50
F27Y1.5KW1.5KW207rpm69N.m1.65
F27Y1.5KW1.5KW232rpm62N.m1.75
F27Y1.5KW1.5KW271rpm53N.m1.90
F27Y1.5KW1.5KW290rpm49N.m1.95
F27Y1.5KW1.5KW344rpm42N.m2.10

FA28減速機配2.2KW電機參數

型號功率輸出轉數輸出扭矩服務系數
F27Y2.2KW2.2KW177rpm119N.m1.10
F27Y2.2KW2.2KW208rpm101N.m1.30
F27Y2.2KW2.2KW233rpm90N.m1.45
F27Y2.2KW2.2KW273rpm77N.m1.70
F27Y2.2KW2.2KW291rpm72N.m1.80
F27Y2.2KW2.2KW354rpm59N.m2.10
F27Y2.2KW2.2KW417rpm50N.m2.30
F27Y2.2KW2.2KW467rpm45N.m2.40
F27Y2.2KW2.2KW547rpm38N.m2.60
F27Y2.2KW2.2KW584rpm36N.m2.70
F27Y2.2KW2.2KW693rpm30N.m2.90

FA28減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約

推薦類似型號：F28減速機

關鍵詞:GFA系列減速器配馬達一體式_分體電機減速機_分體減速機_分體減速機電機_分體電機_FA系列減速機_FA型減速機_GFA系列減速機_FA系列減速器_FA系列減速機生產廠家

FA系列齒輪減速馬達型號：FA28減速機,FA38減速機,FA48減速機,FA68減速機,FA78減速機,FA88減速機,FA98減速機,FA108減速機,FA128減速機,FA158減速機

FA系列電動機減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間

如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求


標簽:  FA28減速電機 FA27平行軸齒輪減速機 FA27減速機功率 FA27減速機基座尺寸 FA27減速機基座尺寸 FA27減速機型號參數

跟此產品相關的文檔 / Related DownLoad

產品文件名稱 點擊下載
FA28減速電機模型基座尺寸下載 點擊下載
FA28減速電機型號參數下載 點擊下載
