KF68減速電機詳細信息

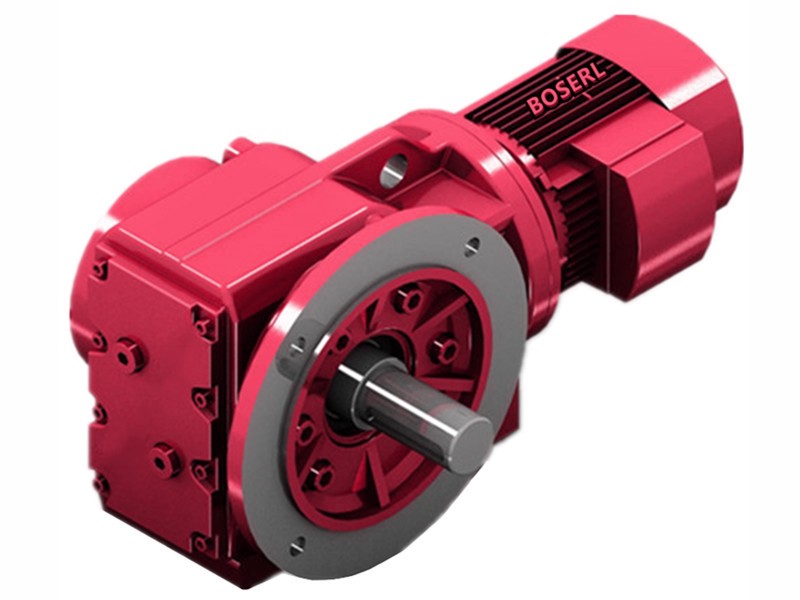

KF68減速電機
訂購熱線：13360667204
KF68減速電機選型計算：齒輪減速馬達
槳式攪拌機參數：攪動飼料0.42噸，每分鐘攪動128圈，攪拌槳輪直徑77
電機轉數1400÷128圈（輸出轉速）=減速比10.94
攪拌0.42噸=4116N
4116N×0.0385攪拌槳輪半徑=158.466×2攪拌水狀物料扭矩放大兩倍=316.932N.m
316.932N.m÷10.94減速比=28.97N.m電機扭矩
28.97N.m電機扭矩換算成功率4.6KW以上
對應的KF68減速機選型參數：
型號：KF68-BEJ5.5KW
減速比：10.63
輸出轉數：137轉每分鐘
輸出扭矩：380N.m
安全系數：1.3
KF68減速電機基座尺寸：輸出軸Φ20+鍵2.5（可定做），高134*寬135*長174（帶輸出軸）伺服電機減速機

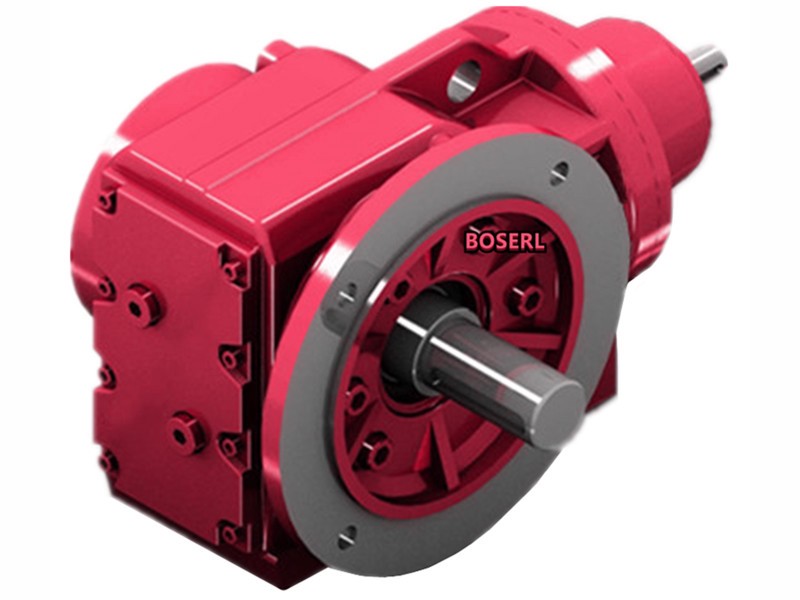

KF68斜齒輪傘齒輪減速機型號：
KF68減速電機型號參數：直角減速機
KF68減速機配0.18KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y0.18KW | 0.18KW | 9.1rpm | 188N.m | 4.4 |
| K67Y0.18KW | 0.18KW | 11rpm | 161N.m | 5.1 |
| K67Y0.18KW | 0.18KW | 12rpm | 141N.m | 5.8 |
KF68減速機配0.25KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y0.25KW | 0.25KW | 9rpm | 265N.m | 3.1 |
| K67Y0.25KW | 0.25KW | 11rpm | 225N.m | 3.6 |
| K67Y0.25KW | 0.25KW | 12rpm | 198N.m | 4.1 |
| K67Y0.25KW | 0.25KW | 13rpm | 188N.m | 4.4 |
KF68減速機配0.37KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y0.37KW | 0.37KW | 9.5rpm | 370N.m | 2.2 |
| K67Y0.37KW | 0.37KW | 11rpm | 315N.m | 2.6 |
| K67Y0.37KW | 0.37KW | 13rpm | 275N.m | 3 |
| K67Y0.37KW | 0.37KW | 15rpm | 230N.m | 3.6 |
| K67Y0.37KW | 0.37KW | 18rpm | 196N.m | 4.2 |
KF68減速機配0.55KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y0.55KW | 0.55KW | 9rpm | 585N.m | 2.6 |
| K67Y0.55KW | 0.55KW | 10rpm | 510N.m | 3 |
| K67Y0.55KW | 0.55KW | 11rpm | 485N.m | 3.2 |
| K67Y0.55KW | 0.55KW | 12rpm | 430N.m | 3.6 |
| K67Y0.55KW | 0.55KW | 14rpm | 365N.m | 4.2 |
KF68減速機配0.75KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y0.75KW | 0.75KW | 9.2rpm | 780N.m | 2 |
| K67Y0.75KW | 0.75KW | 10rpm | 685N.m | 2.3 |
| K67Y0.75KW | 0.75KW | 11rpm | 650N.m | 2.4 |
| K67Y0.75KW | 0.75KW | 12rpm | 575N.m | 2.7 |
| K67Y0.75KW | 0.75KW | 15rpm | 490N.m | 3.1 |
KF68減速機配1.1KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y1.1KW | 1.1KW | 10rpm | 1000N.m | 1.55 |
| K67Y1.1KW | 1.1KW | 11rpm | 950N.m | 1.6 |
| K67Y1.1KW | 1.1KW | 12rpm | 840N.m | 1.85 |
| K67Y1.1KW | 1.1KW | 15rpm | 720N.m | 2.1 |
| K67Y1.1KW | 1.1KW | 16rpm | 660N.m | 2.3 |
| K67Y1.1KW | 1.1KW | 18rpm | 580N.m | 2.7 |
| K67Y1.1KW | 1.1KW | 19rpm | 550N.m | 2.8 |
KF68減速機配1.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y1.5KW | 1.5KW | 10rpm | 1380N.m | 1.1 |
| K67Y1.5KW | 1.5KW | 11rpm | 1310N.m | 1.2 |
| K67Y1.5KW | 1.5KW | 12rpm | 1160N.m | 1.35 |
| K67Y1.5KW | 1.5KW | 14rpm | 990N.m | 1.55 |
| K67Y1.5KW | 1.5KW | 16rpm | 910N.m | 1.7 |
| K67Y1.5KW | 1.5KW | 18rpm | 795N.m | 1.95 |
| K67Y1.5KW | 1.5KW | 19rpm | 755N.m | 2 |
| K67Y1.5KW | 1.5KW | 22rpm | 660N.m | 2.3 |
| K67Y1.5KW | 1.5KW | 24rpm | 595N.m | 2.6 |
| K67Y1.5KW | 1.5KW | 27rpm | 520N.m | 3 |
| K67Y1.5KW | 1.5KW | 31rpm | 460N.m | 3.4 |
| K67Y1.5KW | 1.5KW | 35rpm | 405N.m | 3.8 |
KF68減速機配2.2KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y2.2KW | 2.2KW | 22rpm | 910N.m | 0.9 |
| K67Y2.2KW | 2.2KW | 24rpm | 850N.m | 0.95 |
| K67Y2.2KW | 2.2KW | 29rpm | 730N.m | 1.1 |
| K67Y2.2KW | 2.2KW | 32rpm | 665N.m | 1.25 |
| K67Y2.2KW | 2.2KW | 36rpm | 575N.m | 1.4 |
| K67Y2.2KW | 2.2KW | 39rpm | 530N.m | 1.55 |
| K67Y2.2KW | 2.2KW | 46rpm | 450N.m | 1.8 |
| K67Y2.2KW | 2.2KW | 51rpm | 405N.m | 2 |
| K67Y2.2KW | 2.2KW | 58rpm | 360N.m | 2.2 |
| K67Y2.2KW | 2.2KW | 62rpm | 340N.m | 2.3 |
| K67Y2.2KW | 2.2KW | 73rpm | 285N.m | 2.6 |
| K67Y2.2KW | 2.2KW | 80rpm | 260N.m | 2.8 |
| K67Y2.2KW | 2.2KW | 92rpm | 225N.m | 3.1 |
| K67Y2.2KW | 2.2KW | 106rpm | 198N.m | 3.4 |
| K67Y2.2KW | 2.2KW | 112rpm | 187N.m | 2.8 |
| K67Y2.2KW | 2.2KW | 132rpm | 160N.m | 3.1 |
| K67Y2.2KW | 2.2KW | 145rpm | 145N.m | 3.3 |
| K67Y2.2KW | 2.2KW | 167rpm | 126N.m | 3.5 |
| K67Y2.2KW | 2.2KW | 192rpm | 109N.m | 3.8 |
| K67Y2.2KW | 2.2KW | 269rpm | 78N.m | 4.5 |
KF68減速機配3KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y3KW | 3KW | 32rpm | 900N.m | 0.9 |
| K67Y3KW | 3KW | 36rpm | 785N.m | 1 |
| K67Y3KW | 3KW | 39rpm | 725N.m | 1.15 |
| K67Y3KW | 3KW | 46rpm | 615N.m | 1.35 |
| K67Y3KW | 3KW | 51rpm | 555N.m | 1.45 |
| K67Y3KW | 3KW | 58rpm | 490N.m | 1.65 |
| K67Y3KW | 3KW | 62rpm | 460N.m | 1.7 |
| K67Y3KW | 3KW | 73rpm | 390N.m | 1.95 |
| K67Y3KW | 3KW | 80rpm | 355N.m | 2.1 |
| K67Y3KW | 3KW | 90rpm | 310N.m | 2.2 |
| K67Y3KW | 3KW | 106rpm | 270N.m | 2.5 |
| K67Y3KW | 3KW | 112rpm | 255N.m | 2.1 |
| K67Y3KW | 3KW | 132rpm | 215N.m | 2.3 |
| K67Y3KW | 3KW | 145rpm | 198N.m | 2.4 |
KF68減速機配4KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y4KW | 4KW | 48rpm | 800N.m | 1 |
| K67Y4KW | 4KW | 53rpm | 725N.m | 1.15 |
| K67Y4KW | 4KW | 60rpm | 640N.m | 1.25 |
| K67Y4KW | 4KW | 63rpm | 605N.m | 1.3 |
| K67Y4KW | 4KW | 74rpm | 515N.m | 1.5 |
| K67Y4KW | 4KW | 82rpm | 465N.m | 1.6 |
| K67Y4KW | 4KW | 95rpm | 405N.m | 1.75 |
| K67Y4KW | 4KW | 109rpm | 350N.m | 1.9 |
| K67Y4KW | 4KW | 115rpm | 330N.m | 1.6 |
| K67Y4KW | 4KW | 135rpm | 285N.m | 1.75 |
| K67Y4KW | 4KW | 149rpm | 255N.m | 1.85 |
| K67Y4KW | 4KW | 172rpm | 225N.m | 2 |
| K67Y4KW | 4KW | 197rpm | 194N.m | 2.2 |
| K67Y4KW | 4KW | 276rpm | 138N.m | 2.5 |
KF68減速機配5.5KW電機參數
| 型號 | 功率 | 轉數 | 扭矩 | 安全系數 |
| K67Y5.5KW | 5.5KW | 60rpm | 870N.m | 0.9 |
| K67Y5.5KW | 5.5KW | 64rpm | 820N.m | 0.95 |
| K67Y5.5KW | 5.5KW | 75rpm | 700N.m | 1.1 |
| K67Y5.5KW | 5.5KW | 82rpm | 635N.m | 1.15 |
| K67Y5.5KW | 5.5KW | 95rpm | 550N.m | 1.25 |
| K67Y5.5KW | 5.5KW | 109rpm | 480N.m | 1.4 |
| K67Y5.5KW | 5.5KW | 116rpm | 450N.m | 1.15 |
| K67Y5.5KW | 5.5KW | 136rpm | 385N.m | 1.3 |
| K67Y5.5KW | 5.5KW | 150rpm | 350N.m | 1.35 |
| K67Y5.5KW | 5.5KW | 173rpm | 300N.m | 1.45 |
| K67Y5.5KW | 5.5KW | 198rpm | 260N.m | 1.6 |
| K67Y5.5KW | 5.5KW | 278rpm | 189N.m | 1.85 |
KF68減速電機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約
推薦類似型號：K68減速機
關鍵詞:交流減速機配電機一體式_大扭力減速機_伺服電機減速機_伺服減速機_伺服電機減速器_伺服減速器_伺服電機減速機一體機_伺服減速機一體式_大扭力減速器_GKF系列減速機_KF系列減速機_伺服電機減速機一體式_伺服電機減速機一體化_KF系列減速器
KF系列齒輪減速馬達型號：KF38減速機,KF48減速機,KF58減速機,KF68減速機,KF78減速機,KF88減速機,KF98減速機,KF108減速機,KF128減速機,KF158減速機,KF167減速機,KF187減速機
KF系列直角減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
